CARTER VALVE PRODUCTS

Ball Valve

Ball valves are quarter-turn isolation valves designed for fast shut-off and reliable flow control in industrial piping systems. Using a rotating ball with a precision-machined bore, they provide tight sealing performance, low operating torque, and minimal pressure drop when fully open. Ball valves are widely used in oil & gas, chemical processing, water treatment, power generation, HVAC, and general industrial applications where dependable on/off service is required.

Request A Quote
Top Entry Trunnion Ball Valve
Top Entry Trunnion Ball Valve
CVS-25
• Inline-repairable top entry design.
• Size range up to 56 in.
• Class 150 to 2500 pressure capability.
• Soft or metal seating.
• Standard, cryogenic, and high-temperature options available.

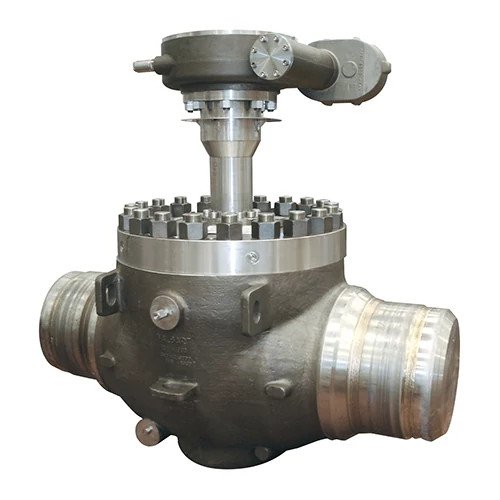

Cryogenic Trunnion Ball Valve
Cryogenic Trunnion Ball Valve
CVS-24
• Cryogenic service to -196°C / -320°F.
• Size range up to 64 in.
• Pressure capability to Class 2500.
• Soft or metal seat options.
• Side-entry and top-entry configurations available.

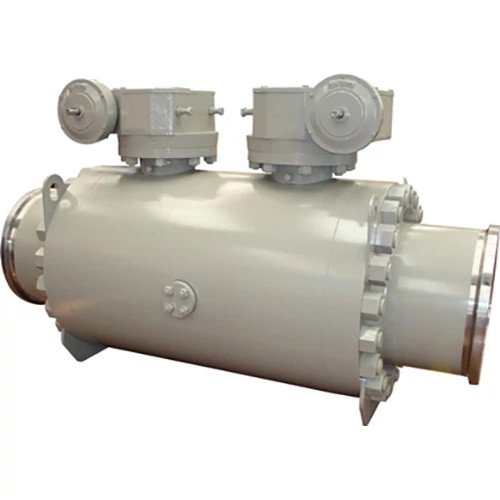

Double Block and Bleed Trunnion Ball Valve
Double Block and Bleed Trunnion Ball Valve
CVS-23
• DBB isolation in a single valve body.
• API 6D / 6A design options.
• Size range up to 56 in.
• Pressure capability up to 10,000 psi.
• Bolted or welded body construction.

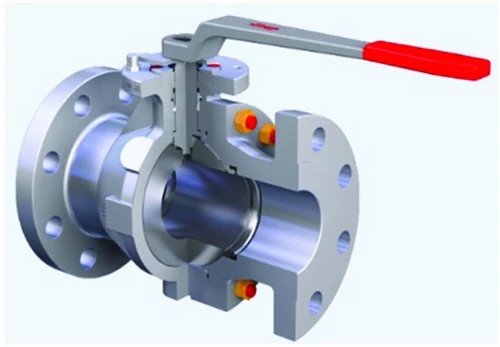

Full-Bore Floating Ball Valve
Full-Bore Floating Ball Valve
CVS-22
• DN 80 to 100 size range.
• Class 150 to 300 pressure rating.
• Operating temperature from -45°C to 250°C.
• Bi-directional metal-to-metal sealing.
• Anti-static and fire-safe construction.

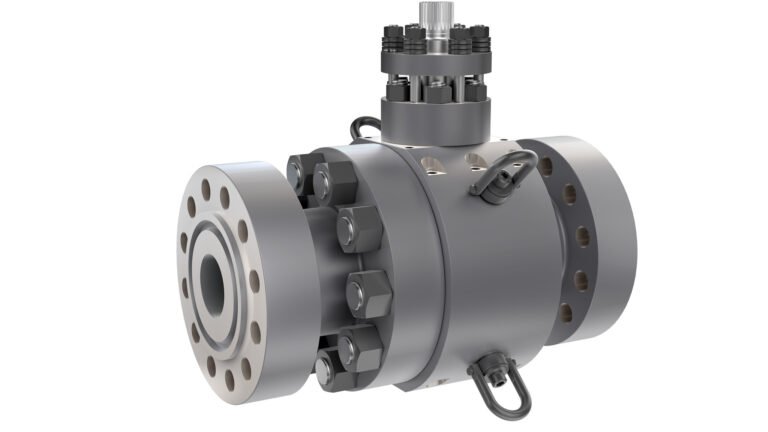

Metal-Seated Floating Ball Valve
Metal-Seated Floating Ball Valve
CVS-21
• Metal-seated severe-service design.
• NPS 1/2 to 36 size range.
• Pressure classes through 2500, with 4500 consult option.
• Standard temperature range to 538°C.
• Broad alloy selection for difficult process media.

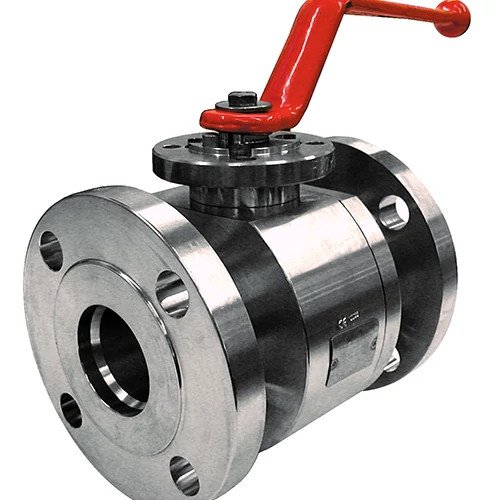

High-Temperature Floating Ball Valve
High-Temperature Floating Ball Valve
CVS-20
• Temperature capability to 650°C.
• Pressure rating up to Class 2500.
• DN 15 to 50 mm size range.
• Metal or soft seat options.
• Extreme high-cycle configuration available.

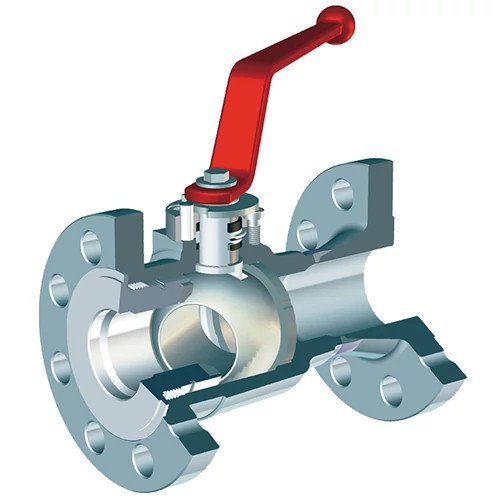

End-Entry Floating Ball Valve
End-Entry Floating Ball Valve
CVS-19
• Compact end-entry configuration.
• DN 15 to 50 mm size range.
• Class 150 to 600 pressure rating.
• Operating temperature from -48°C to 230°C.
• Soft seated construction.

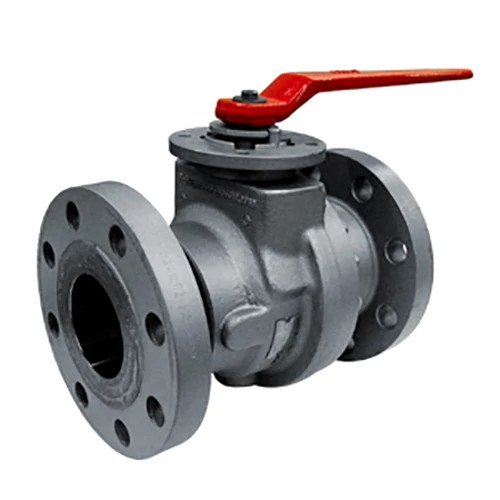

Split-Body Floating Ball Valve
Split-Body Floating Ball Valve
CVS-18
• DN 65 to 200 mm size range.
• Class 150 to 900 pressure capability.
• Temperature range from -48°C to 400°C.
• Metal or soft seat options available.
• API 6D and ISO 15848 aligned construction.

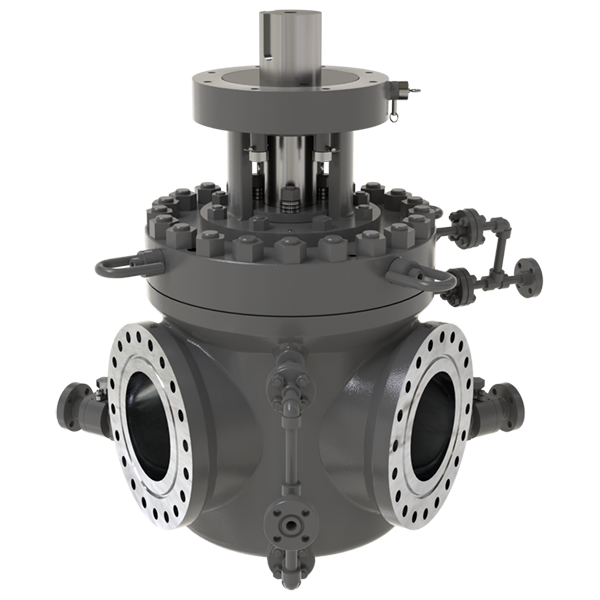

Delayed Coking Switching Ball Valve
Delayed Coking Switching Ball Valve
CVS-17
• ASME 600 / 900 class service.
• 6 to 16 in size range.
• Body material options for severe-duty builds.
• RFF or RTJ end connections.
• Type II body and Type III drain purging.
