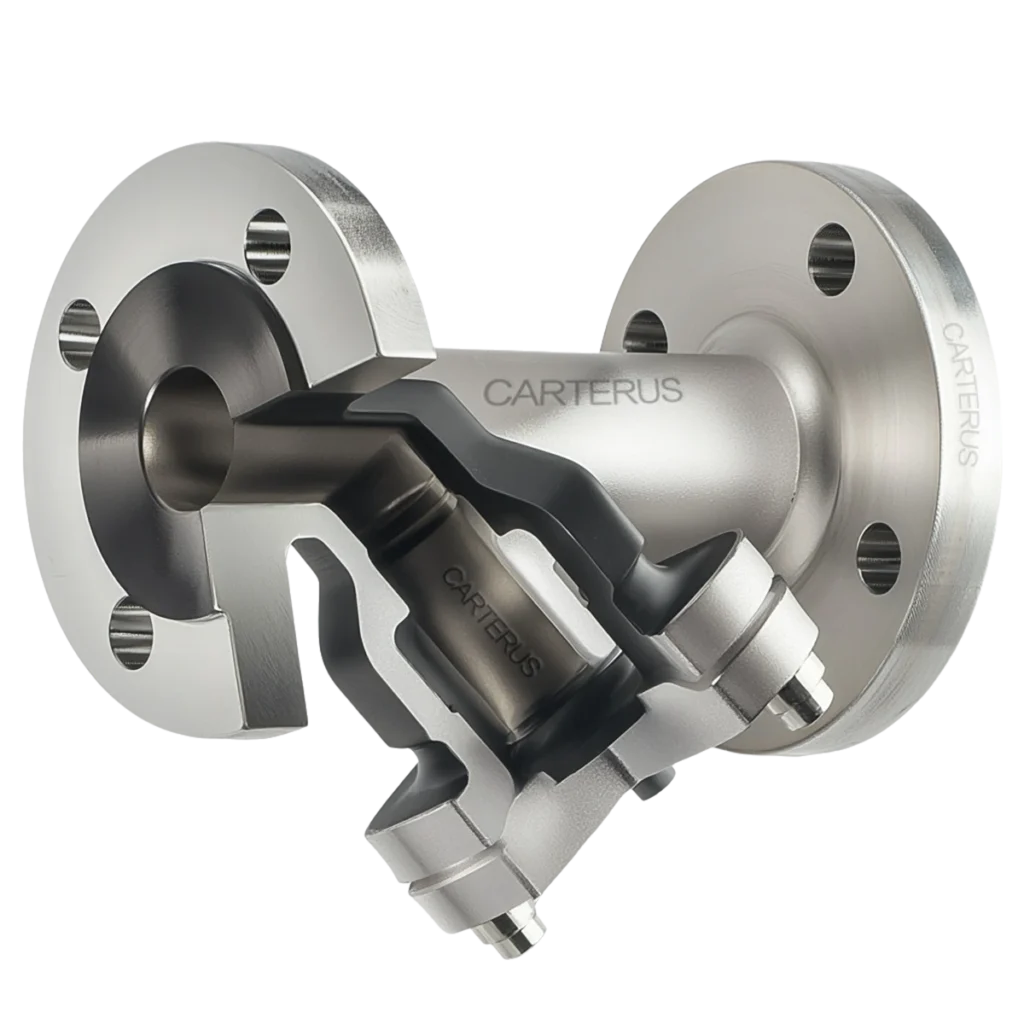

Key Features

Efficient Solid Particle Filtration
Designed to remove debris, rust, scale, and other solid impurities from pipelines, protecting valves, pumps, and instruments.

Large-Area Screen Design
Optimized screen surface area ensures effective filtration with minimal pressure drop, improving overall system efficiency.

Multiple Mesh Options Available
Interchangeable screen mesh sizes allow customization to meet different filtration accuracy requirements.

Convenient Blow-Off Cleaning
Equipped with a blow-off plug for easy draining and maintenance without removing the strainer from the pipeline.

Wide Material Selection
Available in Cast Iron (EN-JL1040), Ductile Iron (EN-JS1049), Carbon Steel (1.0619+N / 1.0460), Stainless Steel 316L (1.4408), and Alloy Steel (1.7335) for various operating conditions.

Broad Temperature Capability
Operating ranges depending on material:

Up to 300°C for Cast Iron

Up to 350°C for Ductile Iron

Up to 450°C for Carbon Steel

Up to 400°C for Stainless Steel 316L

Up to 550°C for Alloy Steel

Multiple Pressure Ratings
Available in a wide range from PN6 / Class 150 up to PN160 / Class 900, suitable for low to high-pressure systems.

Flexible End Connections
Offered with Flanged and Butt Weld End configurations.

Comprehensive Size Range
Sizes from 3/8” to 12” (DN 10–300) to cover small instrumentation lines to larger process pipelines.

Versatile Media Compatibility
Suitable for steam, gases, liquids, and general industrial process media.

Protects Critical Equipment
Acts as the first line of defense for downstream pumps, control valves, meters, and instruments.

Ideal for Start-Up & Continuous Operation
Frequently used in system start-up to prevent debris damage and in long-term operation for ongoing protection.
